Bell & Gossett 1EF058LF – e613T, e-60 Series, In-Line Centrifugal Pump
$1,985.00
118 GPM, 1.5 x 1.5 x 6.25 in., 3/4 HP, 208-230/460 V, 3-phase, 5.75 in.
Description

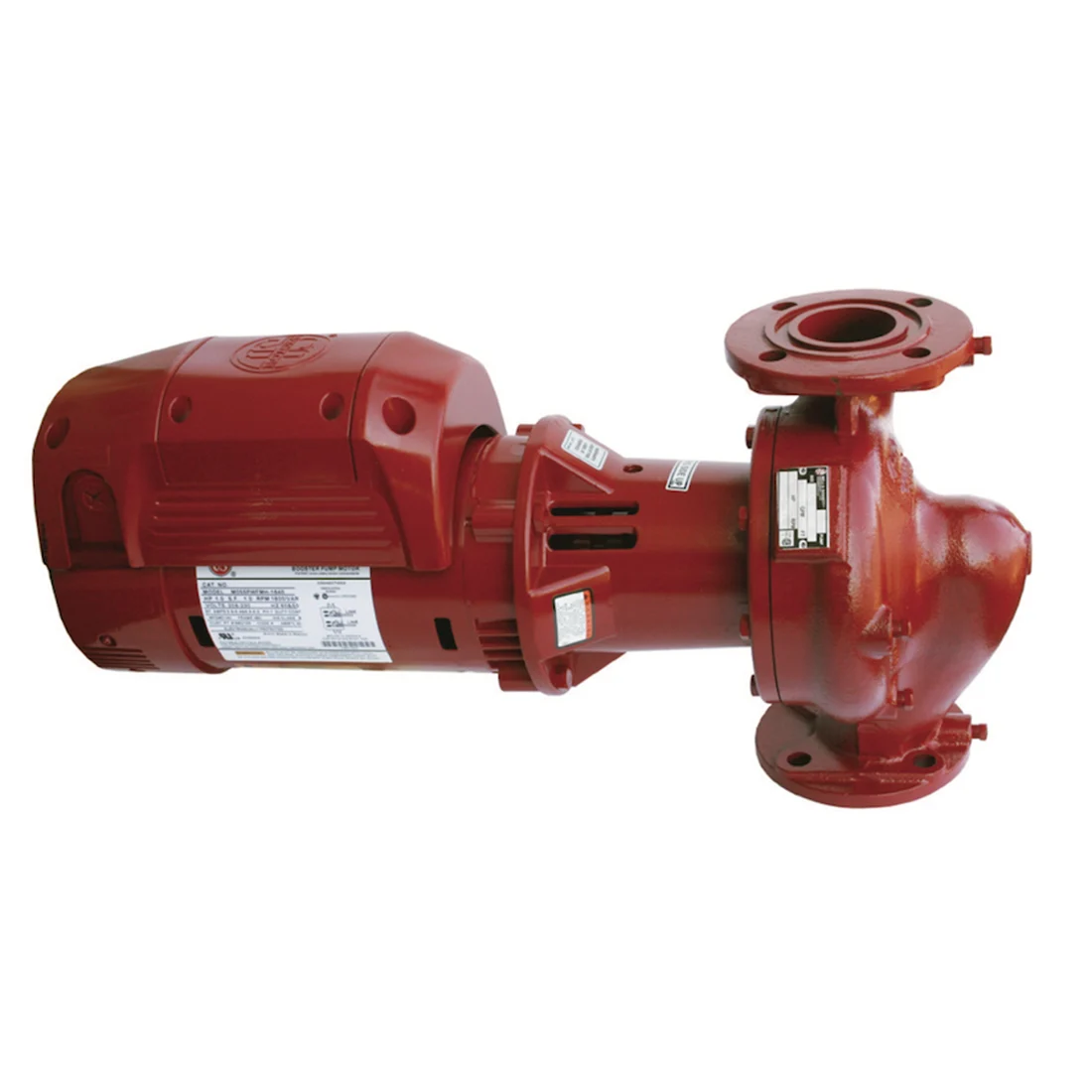

Bell & Gossett e-60 In-Line Mounted Centrifugal Pump
The series e-60 is a three-piece in-line centrifugal pump designed for heating and cooling, and other fluid transfer applications in the residential and commercial markets.
Features
- Permanently lubricated pump and motor bearings—no regreasing needed
- Class-leading hydraulic efficiency
- Upgraded unitized mechanical seal
- Dimensional interchangeability with legacy Series 60
- Space saving in-line mounting
- Easy serviceability—motor, coupler, seal and impeller can all be repaired or replaced without removing the pump from its piping
- Quiet operation
- Robust mechanical seal
- Suction and discharge companion flanges included
- 3 year warranty
| Brand | Bell & Gossett |
| Product Type | Circulator |
| Application | Hydronic systems |
| Series | e-60 |
| Horsepower | 3/4 HP |
| Voltage | 208-230/460 Volts |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed | 1750 RPM |
| Maximum Flow | 118 GPM |
| Maximum Head | 34 ft |
| Impeller Material | ASTM B584 |
| Duty Rating | 1EF058LF |
| Overload Protector | e613T |
| Electrical Type | Open Drip Proof |
| Starting Method | 1.5″ x 1.5″ x 6.25″ |
| Design Code | 5.75″ |
| KVA Code | Cast iron |
| Frame Length | Steel |
| Shaft Diameter | EPR/Carbon/Silicon-Carbide |
| Insulation Class | Flanged |
| Opp Drive End Bearing | 175 psi (12 bar) |
| Drive End Bearing | 250°F |
| Shaft Extension Location | 3 years |
Additional information
| Weight | 68 lbs |
|---|
