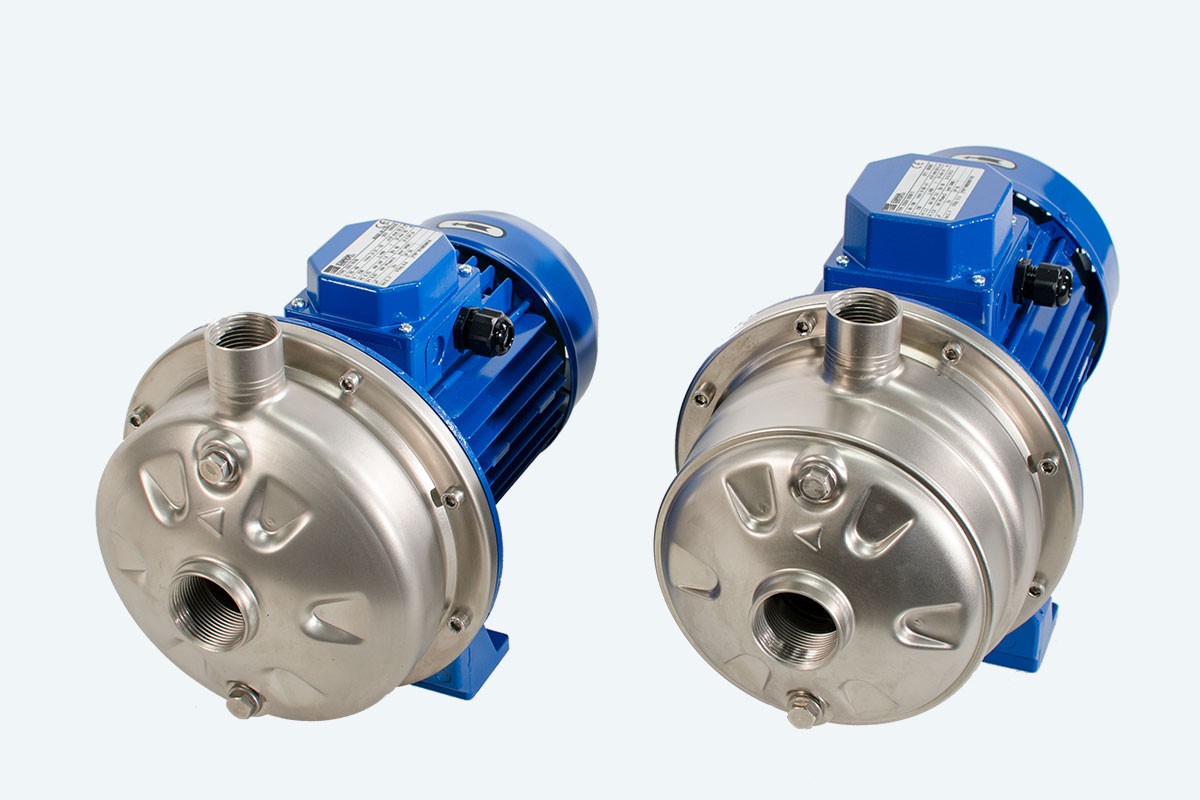

Ebara 2CDXU70/206T2 – Model 2CDX Two Stage Stainless Steel Centrifugal Pump
$1,450.95
2-stage, 3500 RPM, 2 HP, 230/460 V, 3-phase, TEFC, Carbon/Ceramic/Viton
Description
Key Features
- Close coupled design– saves space; simplifies maintenance and installation
- Stainless steel liquid end components– high quality; corrosion resistance
- Versatile mounting– can be installed vertically or horizontally
- Back pullout construction– assembly and overhaul of the impeller and seal without distorting suction and discharge connections
- Top centerline discharge– ensures self-venting and reduces misalignment from pipe loads
- High operating efficiency– lowers operating costs
- High quality mechanical shaft seals and o-rings– available for standard pumping requirements
- Available with IP55 TEFC motors
Specifications
- Suction Size: 1 1/4″ to 1 1/2″ NPT thread
- Discharge Size: 1″ NPT thread
- Range of HP: 3/4 to 5 HP
- Capacity: 5 to 66 GPM
- Head: 40 to 255 Ft.
- Liquid: clean water
Applications
- Pressure boosting
- Plant services
- Liquid transfer
- Pharmaceutical services
- OEM equipment application
Additional information
| Weight | 40 lbs |
|---|
