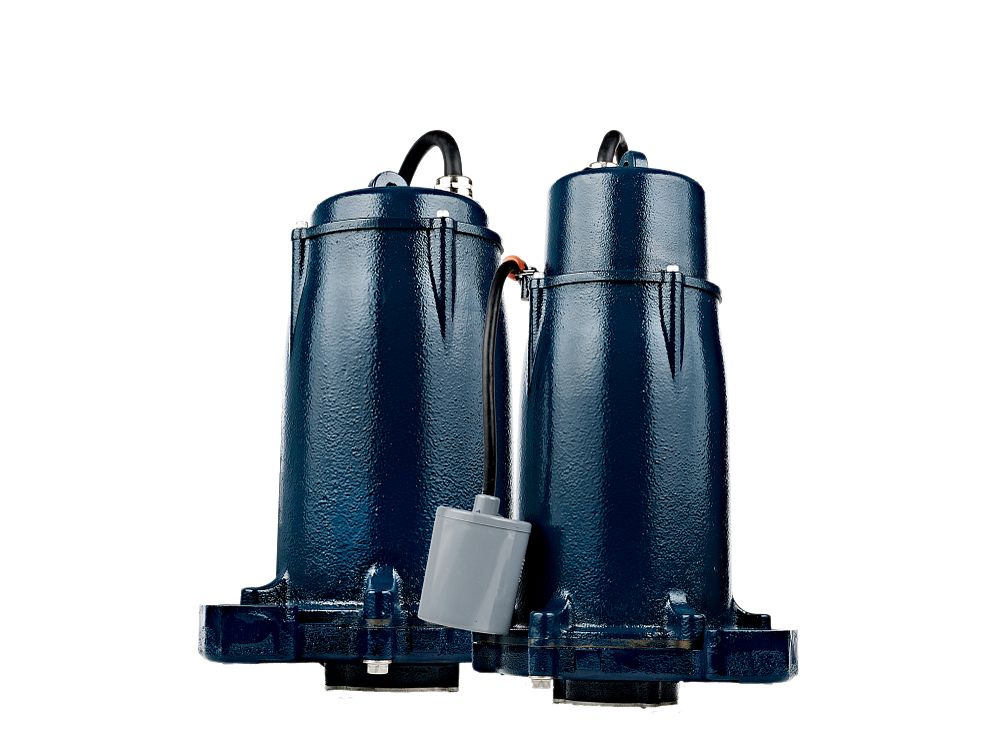

Franklin Electric 515873 – Model IGP-A231-20 – IGP-A Series Automatic Grinder Pump (w/float)
$1,985.00
33 GPM Max, Cast Iron, 3450 RPM, 2 HP, 230 V, 1-phase, 60 Hz, 13.9 A, Vortex, 6.25 in., Carbon Ceramic, 30 ft.
Description
Franklin Electric 515863, Model IGP-A231-20
2 HP, 230V, Single Phase Grinder Pump, 30’ Cord
Ratings |
|
| HP 60Hz | 2 hp |
| Frequency | 60 Hz |
| Phases | Single-Phase |
| Amps – Full Load | 13.9 A |
| Volts | 230 VAC |
| Lead Length | 30 ft |
| Continuous Duty | Yes |
| Motor Insulation Classification | F |
Operation |
|
| Maximum Flow Rate – 60 Hz | 33 gpm |
| Minimum Flow Rate – 60 Hz | 9 gpm |
| Shut Off | 120 ft |
| Minimum Head – 60 Hz | 0 ft |
| Shut Off 60 Hz | 130 ft |
| Motor Cooling | Fully Submerged |
| Pump rpm – 60 Hz | 3450 |
Liquid |
|
| Maximum Fluid Temperature | 40 °C |
Materials of Construction |
|
| Impeller | Vortex |
| Impeller Material | Brass |
| Motor Shaft End – Material | Stainless Steel |
| Intake Screen Material | Stainless Steel |
| Seal Material | Carbon Ceramic |
| Seal | Mechanical Seal |
| Motor Fill Solution | Oil (white oil) |
| Rotating Cutter Material | AISI 440C Rockwell 55-60C |
| Volute / Side Inlet Material | Cast Iron |
| Stationary Cutter Material | AISI 440C Rockwell 55-60C |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 1.25 “ |
| Impeller Diameter | 6.25 “ |
| Pump Length | 9.6 “ |
| Product Weight | 104 lb |
| Product Weight with Pack | 110 lb |
| Carton Length | 11 “ |
| Carton Width | 14 “ |
| Carton Height | 23 “ |
| Pump Height | 18.6 “ |
| Pump Width | 11.4 “ |
| Shaft Diameter | 1.13 “ |
Other |
|
| Electrical Agency Approvals | cCSAus |
| Warranty Standard Time | 12 Month Install / 24 Month Manufacturing |
| Applications | Residential and light commercial sewage waste transfer |
Additional information
| Weight | 110 lbs |
|---|
