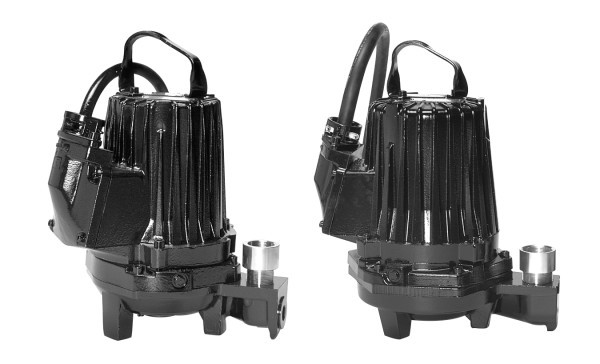

Goulds 1GA71G1HDX, 3HP, 230V, 1 Phase, Explosion Proof, Grinder Pump

$6,356.14

SKU: 1GA71G1HDX Category: Brand:

Description

Summary:

  • Design: Capable of grinding municipal, commercial and industrial sewage.
  • Cutter System: Designed to reduce sewage to a fine slurry.
  • Impeller: Cast iron, semi-open, non-overloading multivane design with pump-out vanes for mechanical seal protection.
  • Casing: Cast iron, volute type for high efficiency.
  • Adaptable for slide rail system.
  • Paint: Two coat paint system for superior surface protection.
  • Float Leakage Sensor (FLS): a small internal float switch is used to detect the presence of water in the stator chamber. Standard on all models.
  • Leakage Sensor Detector Circuit: The FLS, when activated, will cause the patented 24 volt MiniCAS monitoring relay to signal an alarm and, if desired, stop the pump.
  • The MiniCAS 24 volt relay can be ordered separately for installation in a control panel by a UL or CSA certified panel shop or as a built-in option in our control panel.

Details:

For more specific information, please view the following:

Brand Goulds
Mfg. Number 1GA71G1HDX
Series 1GAX
Product Type Grinder pump
Application Pressure sewage systems
Horsepower 3 HP
Voltage 230 volts
Phase 1
Frequency 60 Hz.
Speed 3450 RPM
Max. Amps 13 amps
Start Amps 74 amps
Locked Rotor Amps 52 amps
Design Submersible/Explosion proof/Dual seal
Discharge Connection 1-1/2″
Maximum Capacity 55 GPM
Maximum Head 95 ft.
Operation Manual
Min. Submergence (Continuous) Top of motor dome
Max. Submergence 65 ft.
Impeller Code H
Impeller Material Cast iron
Pump Casing Material Cast Iron
Motor Shaft Material 431 Stainless steel
Rotating Cutter Material Chrome alloyed cast iron
Cutter Ring Material 316L Stainless steel
Shaft Seal ceramic/ceramic lower, carbon/ceramic upper
Overload Protection No, required in control panel
Motor Insulation Class F
Max. Working Pressure 80 PSI
Max. Temperature 104°F
Power Cord Size 14/7
Cord Length 30 ft.

For more specific details, please view the following:

Additional information

Weight 135 lbs
