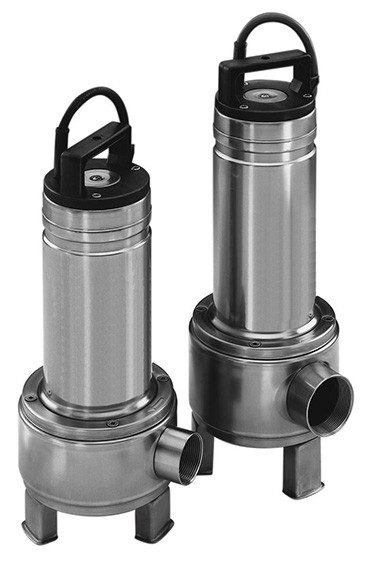

Goulds 2DM51E1NA, 1HP, 230V, 1 Phase, 2DM Model Sewage Pump
$1,764.99
Description
Summary:
Applications include homes and farms; mobile home parks and motels; schools and hospitals; municipal package systems; industrial treatment systems; and dewatering applications
Features:
- Casing: Corrosion resistant AISI 304 SS designed for long lasting performance
- Impeller: AISI type 304 stainless steel construction; two vane non-clog design for maximum pumping efficiency
- Mechanical Seal: Drive lube silicon carbide sealing faces; all metal components of AISI type 300 stainless steel running in protected oil chamber
- Elastomers: BUNA-N
- Pump Support Feet; Motor Shell and Lifting Handle: Constructed of AISI type 304 series stainless steel
- Shaft: AISI type 304 stainless steel high strength pump shaft with keyed and locking cap screw impeller fastening
- Discharge: 1.” and 2″ NPT for horizontal connection to rigid, flexible or guide rail piping connection.
Details:
| Brand | Goulds |
| Mfg. Number | 2DM51E1NA |
| Series | 2DM |
| Product Type | Sewage pump |
| Application | Drainage, raw water |
| Operation | Manual |
| Horsepower | 1 HP |
| Voltage | 230 Volts |
| Motor Casing | Stainless steel (AISI 304) |
| Phase | 1 |
| Frequency | 60 Hz |
| Pump Body | Stainless steel (AISI 304) |
| Speed | 3450 RPM |
| Impeller Type | Two vane; non-clog |
| Start Current | 30.6 Amps |
| Capacitor uF/V | 30/450 |
| Maximum Solids Handling | 2″ |
| Discharge Connection | 2″ NPT |
| Maximum Flow | 157 GPM |
| Maximum Head | 40 ft |
| Cord Length | 20 ft |
| Resistance Start/ Line-Line | 4.2 / 1.9 |
| Maximum Submergence | 17 ft |
| Maximum Current | 7.0 Amps |
| Maximum Temperature (Continuos) | 104°F |
| Maximum Temperature (Intermittent) | 140°F |
For more details, please view the following:
Additional information
| Weight | 32 lbs |
|---|
