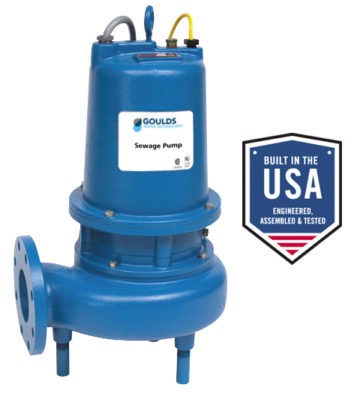

Goulds 4SD52K4FA, 4SD Series, 7.5HP, 460V, 3 Phase, Dual Seal Sewage Pump with Seal Sensor Probe
$7,614.61
7.5 HP, 460 V, 3-phase
Description
Summary:
Wastewater Submersible Sewage Pumps Dual Seal with Seal Sensor Probe 4SD
- Cast iron, two vane semi-open, non-clog impeller with pump-out vanes for mechanical seal protection
- Heavy duty cast iron, volute type casing for maximum efficiency
- Dual Mechanical Seals
- Seal Sensor Probe
- Stainless steel shaft and fasteners
Details:
| Brand | Goulds |
| Mfg. Number | 4SD52K4FA |
| Series | 4SD |
| Product Type | Sewage pump |
| Application | Sewage/Dewatering/Effluent |
| Operation | Manual |
| Horsepower | 7-1/2 HP |
| Voltage | 460 Volts |
| Phase | 3 |
| Frequency | 60 Hz |
| Pump Casing | Cast iron |
| Speed | 1750 RPM |
| Impeller Diameter | 7.69″ |
| Minimum Casing Thickness | 5/16″ |
| Casing Corrosion Allowance | 1/8″ |
| Impeller Material | Cast iron |
| Impeller Type | Two vane, semi-open; non-clog |
| Power Cord Length | 20 ft |
| Thermal Protection | Control panel required |
| Maximum Solids Handling | 3″ |
| Minimum Submergence | 6″ below top of motor |
| Discharge Connection | 4″ 125# ANSI flange 8 bolt horizontal |
| Maximum Flow | 620 GPM |
| Maximum Head | 60 ft |
| Impeller Code | F |
| Seal Sensor Cable | 16/2, type SJTOW |
| Motor Design | NEMA 56 Frame |
| Seal/Heat Sensor Cable | 18/4, type SJTOW |
| Motor Cover | Cast iron |
| Motor Shaft | AISI 300 stainless steel |
| Locked Rotor Current | 52.5 Amps |
| Maximum Working Pressure | 30 PSI |
| Motor Insulation Rating | Class “F” |
| Maximum Submergence | 50 ft |
| Maximum Current | 11.5 Amps |
| KVA Code | G |
| Full Load Motor Efficiency | 83% |
| Start Resistance | N/A |
| Line-Line Resistance | 2.8 |
| Maximum Temperature – Continuos | 104°F |
| Maximum Temperature – Intermittent | 140°F |
| Power Cable Size | 10/4 |
For more information, please view the following:
Additional information
| Weight | 235 lbs |
|---|
