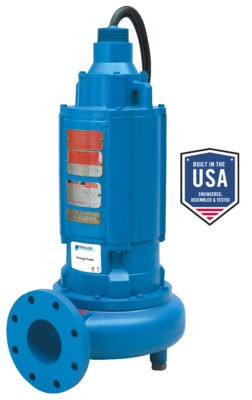

Goulds 4SDX12G2KC, 4SDX Series, 2HP, 200V, 3 Phase, Dual Seal Sewage Pump with Seal Sensor Probe
$7,932.98
2 HP, 200 V, 3-phase
Description
Summary:
4″ Discharge Submersible Sewage Pump with Explosion Proof Motor
- Cast iron, ASTM A48, Class 30, two vane semi-open not-clog design impeller with pump out vanes for mechanical seal protection
- Heavy duty gray cast iron, ASTM A48, Class 30 Volute type casing with 4″, 125#, flanged, horizontal discharge conforming to ANSI standards
- Tandem mechanical seal system in an oil filled seal chamber. Each seal operates independently to ensure fail safe performance
- Explosion Proof Motor for use in hazardous locations. Rated Class 1, Groups C & D
- All motors conform to the latest requirements of NEMA, IEEE, ANSI and NEC standards
Details:
| Brand | Goulds |
| Mfg. Number | 4SDX12G2KC |
| Series | 4SDX |
| Product Type | Sewage Pump |
| Application | Sewage/Dewatering/Effluent |
| Horsepower | 2 HP |
| Voltage | 200 volts |
| Phase | 3 |
| Frequency | 60 Hz |
| Speed | 1750 RPM |
| Service Factor Current | 7.6 Amps |
| Full Load Current | 6.8 Amps |
| Locked Rotor Amps | 50.6 Amps |
| Discharge Connection | 4″ ANSI 125# Flange |
| Maximum Capacity | 450 GPM |
| Maximum Head | 22 ft. |
| Max. Solid Size | 3″ |
| Max. Submergence | 200 ft. |
| Impeller Diameter | 5.69″ |
| Impeller Material | Cast iron |
| Impeller Code | K |
| Pump Housing Material | Cast iron |
| Motor Casing Material | Cast iron |
| Motor Shaft Material | 416 stainless steel |
| Lower/Uper Shaft Seal | Carbon/Ceramic/BUNA/304SS |
| Rotation | Clockwise viewed from motor end |
| Overload Protection | Requires Class 10, quick-trip, ambient compensated |
| Motor Insulation | Class F |
| Max. Working Pressure | 100 PSI |
| Max. Temperature (Continuous) | 104°F |
| Power Cord | 14/4 |
| Cord Length | 25 ft. |
For more information, please view the following:
Additional information
| Weight | 300 lbs |
|---|
